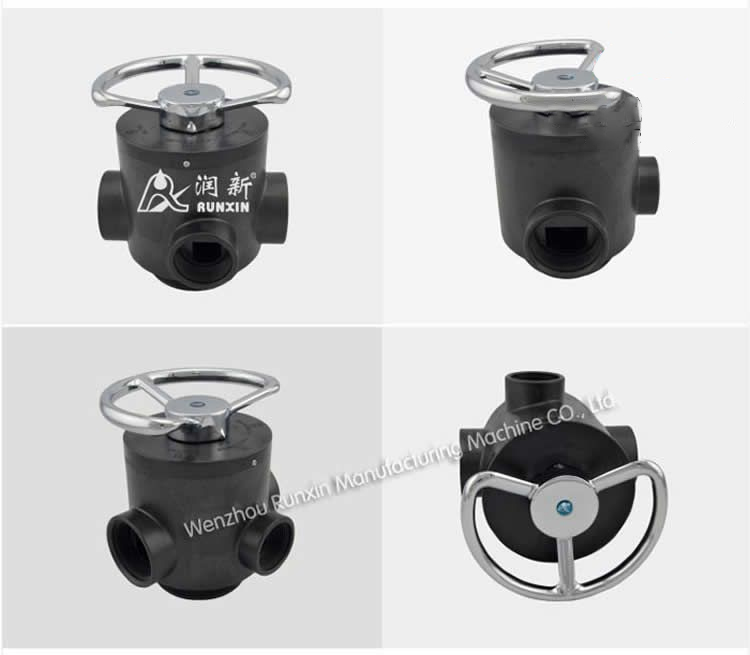

Filter valve Runxin 51110 (N56D)
Technical Parameters
- Water Pressure----0.15—0.6MPa
- Water Temperature--5℃-50℃
- Water Turbidity------＜20FTU
- Inlet/Outlet-------------2″F
- Drain--------------------1.5″F
- Base--------------------4″-8UN
- Riser Pipe-------------1.5"D-GB
- Max Flow Rate------10 m3/h
- Suitable Tank Size (in)-10″～24″
Product Characteristics
- It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
- No water passes the valve in rinse in single tank type.
- Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
- It can be changed to be side-mounted valve with side-mounted connector.
- It can operate under pressure, without leakage.
Range of Application
- Residential filtration system
- Swimming pool filtration equipment
- Active carbon or sand filter in RO pretreatment filtration system
